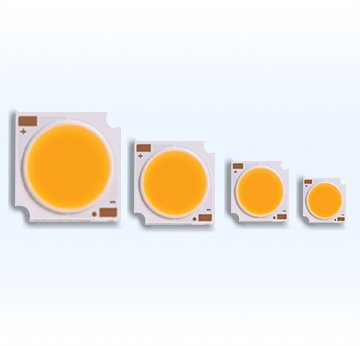

Everstar COB series covers a wide range of luminous flux with excellent reliability & high quality. The element arrangement in LED package is capable of utilizing light more effectively with higher performance.
| Part no. | Power | Size(mm) | VF | IF | FLux | LES(mm) | CCT | CRI | Certificate | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|
| ES-11-XQ005-0300-XXXXX | 4.5-6W | 13.5*13.5*1.5 | 15V | 300-390mA | 798-876 | 11.2 | 2700-6000 | 80 | LM80 | DOWNLOAD |
| ES-11-XQ007-0300-XXXXX | 6.3-8.5W | 13.5*13.5*1.5 | 21V | 300-390mA | 1105-1215 | 11.2 | 2700-6000 | 80 | LM80 | DOWNLOAD |
| ES-11-XQ0010-0300-XXXXX | 9-12.1W | 13.5*13.5*1.5 | 30V | 300-390mA | 1512-1699 | 11.2 | 2700-6000 | 80 | LM80 | DOWNLOAD |
| ES-11-XQ007-0200-XXXXX | 7-9W | 13.5*13.5*1.5 | 36V | 200-300mA | 120-136 | 11.2 | 2700-6000 | 80 | LM80 | DOWNLOAD |
| ES-11-XQ009-0250-XXXXX | 9-14W | 13.5*13.5*1.5 | 36V | 250-450mA | 128-135 | 11.2 | 2700-6000 | 80 | LM80 | DOWNLOAD |
| ES-11-XQ013-0350-XXXXX | 13-19W | 13.5*13.5*1.5 | 36V | 350-600mA | 128-135 | 11.2 | 2700-6000 | 80 | LM80 | DOWNLOAD |
| ES-17-XQ018-0500-XXXXX | 18-24W | 19*19*1.5 | 36V | 500-750mA | 128-135 | 17 | 2700-6000 | 80 | LM80 | DOWNLOAD |
| ES-17-XQ024-0600-XXXXX | 21-34W | 19*19*1.5 | 36V | 600-1050mA | 128-135 | 17 | 2700-6000 | 80 | LM80 | DOWNLOAD |
| ES-22-XQ038-1050-XXXXX | 38-57W | 28*28*1.5 | 36V | 1050-1800mA | 1250-1500 | 24.5 | 2700-6000 | 80 | LM80 | DOWNLOAD |
| ES-11-EQ08-200-2760T85 | 7-9W | 15.8*15.8*1.8 | 34-40V | 180-250mA | 620-720 | 8.5 | 2700-6000 | 85 | LM80 | DOWNLOAD |
| ES-14-EQ012-300-2760T85 | 11-18W | 19*19*1.8 | 34-40V | 300-500mA | 1250-1500 | 12 | 2700-6000 | 85 | LM80 | DOWNLOAD |
| ES-14-EQ018-500-2760T85 | 18-28W | 19*19*1.8 | 34-40V | 500-800mA | 1800-2050 | 12 | 2700-6000 | 85 | LM80 | DOWNLOAD |
| ES-17-EQ030-800-2760T85 | 28-36W | 19*19*1.8 | 34-40V | 800-1000mA | 2500-3000 | 14.5 | 2700-6000 | 85 | LM80 | DOWNLOAD |
