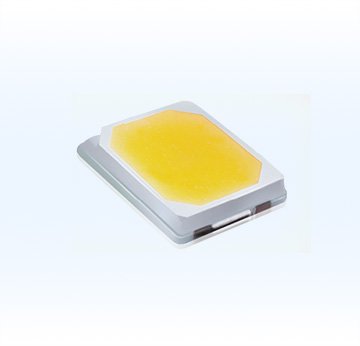

This 2835 LED Light Source is a high performance energy efficient device which can handle high thermal and high driving current. The small package outline and high intensity make it an ideal choice for LED panel light, LED bulb light, LED tube light, backlighting etc. The White Power LED is available in the range of color temperature from 2700K to 7000K as well as in Red, Amber, Pink, Green, Blue colour.
This part has a foot print that is compatible to most of the same size LED in the market today.
| Part no. | Colour | Power | Size | VF | IF | Flux | CCT | CRI | Certificate | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|
| ES-2835-053V-XX-XXX-XX | white | 0.5W | 3.5*2.8*0.68 | 3V | 150mA | 65-70 | 2700-7000 | 80 | LM80 | DOWNLOAD |
| ES-2835-053V-L1-PXXXX | Pink | 0.5W | 3.5*2.8*0.68 | 3V | 150mA | - | 2050 | - | LM80 | DOWNLOAD |
| ES-2835-052V-L1-RXXX | Red | 0.5W | 3.5*2.8*0.68 | 2V | 150mA | - | 615-625 | - | LM80 | DOWNLOAD |
| ES-2835-053V-L1-GXXX | Green | 0.5W | 3.5*2.8*0.68 | 3V | 150mA | - | 512-525 | - | LM80 | DOWNLOAD |
| ES-2835-053V-L1-BXXX | Blue | 0.5W | 3.5*2.8*0.68 | 3V | 150mA | - | 450-460 | - | LM80 | DOWNLOAD |
| ES2835-053V-XX-A2200 | Amber | 0.5W | 3.5*2.8*0.68 | 3V | 150mA | 50-60 | 2200-2400 | 80 | LM80 | DOWNLOAD |
